As-Built Record Drawings in BC: The Definitive Guide for Civil Projects (2026)

What if the most expensive mistake on your next civil project isn’t a construction error, but a documentation gap? For many project leads, the final stages of a build are marred by the realization that underground utilities or structural changes weren’t captured with the precision required for long-term liability protection. It’s a common frustration to see project close-outs stall because the data provided doesn’t meet the rigorous standards for as-built record drawings BC municipalities demand.

You need more than just a red-lined site plan; you need a digital insurance policy for your infrastructure. This guide clarifies how professional as-built record drawings BC protects your investment and prevents rework through precise 3D data collection. We will examine the critical distinction between contractor markups and verified record drawings, the requirements for a Professional of Record seal, and the methods used to ensure your site maintenance remains efficient for decades to come.

What are As-Built Record Drawings in BC Civil Infrastructure?

In the context of British Columbia’s civil infrastructure, as-built record drawings represent the final, verified record of what was actually constructed on-site. While design drawings outline the engineer’s intent, the physical reality often shifts due to unforeseen soil conditions, utility conflicts, or field adjustments. In BC, these documents are essential for the transition from the construction phase to the operational lifecycle. As-built record drawings BC standards ensure that every deviation from the original plan is documented, providing a reliable reference for owners and municipalities alike. This distinction matters because not every field record carries the same weight; our guide on the importance of verification and record-keeping in as-built surveys explains why unverified contractor markups should never be treated as a substitute for a certified record drawing.

This documentation is not merely a formality; it’s a requirement for project handover. Without accurate records, a project cannot be officially closed out, and certificates of occupancy or final municipal approvals may be withheld. The process involves capturing specific data points including:

• Precise horizontal and vertical locations of underground utilities like water, sewer, and gas lines.
• Final grading and drainage elevations to ensure proper site runoff.
• Structural modifications made to retaining walls, foundations, or roadways.
• Deviations in material specifications or dimensions that occurred during the build.

The Purpose of Post-Construction Documentation

Post-construction documentation serves as the primary tool for long-term asset management. When a project reaches completion, the handover process relies on the clarity of these records to facilitate future maintenance and emergency repairs. In many BC municipalities, such as Vancouver, specific coordinate systems like NAD83UTM10-metres are required to ensure data integrates seamlessly with regional GIS systems. Understanding the nuances of As-built vs. Record Drawings is vital. While as-builts are often the contractor’s field notes, record drawings are the final versions prepared and sealed by a Professional of Record (POR), as emphasized in the Engineers and Geoscientists BC (EGBC) 2023 Practice Advisory.

Legal and Safety Implications of Inaccurate Data

The stakes for accuracy are high. Inaccurate data can lead to catastrophic utility strikes during future site expansions, creating significant safety hazards and financial losses. Professional as-built record drawings BC provide a layer of liability protection for both contractors and owners by establishing a clear record of the work performed. If a future contractor relies on faulty data and hits a buried high-voltage line, the original project’s documentation becomes a central piece of the legal narrative. The digital legacy of a civil project site is defined by the accuracy of its final data, serving as the blueprint for every future intervention.

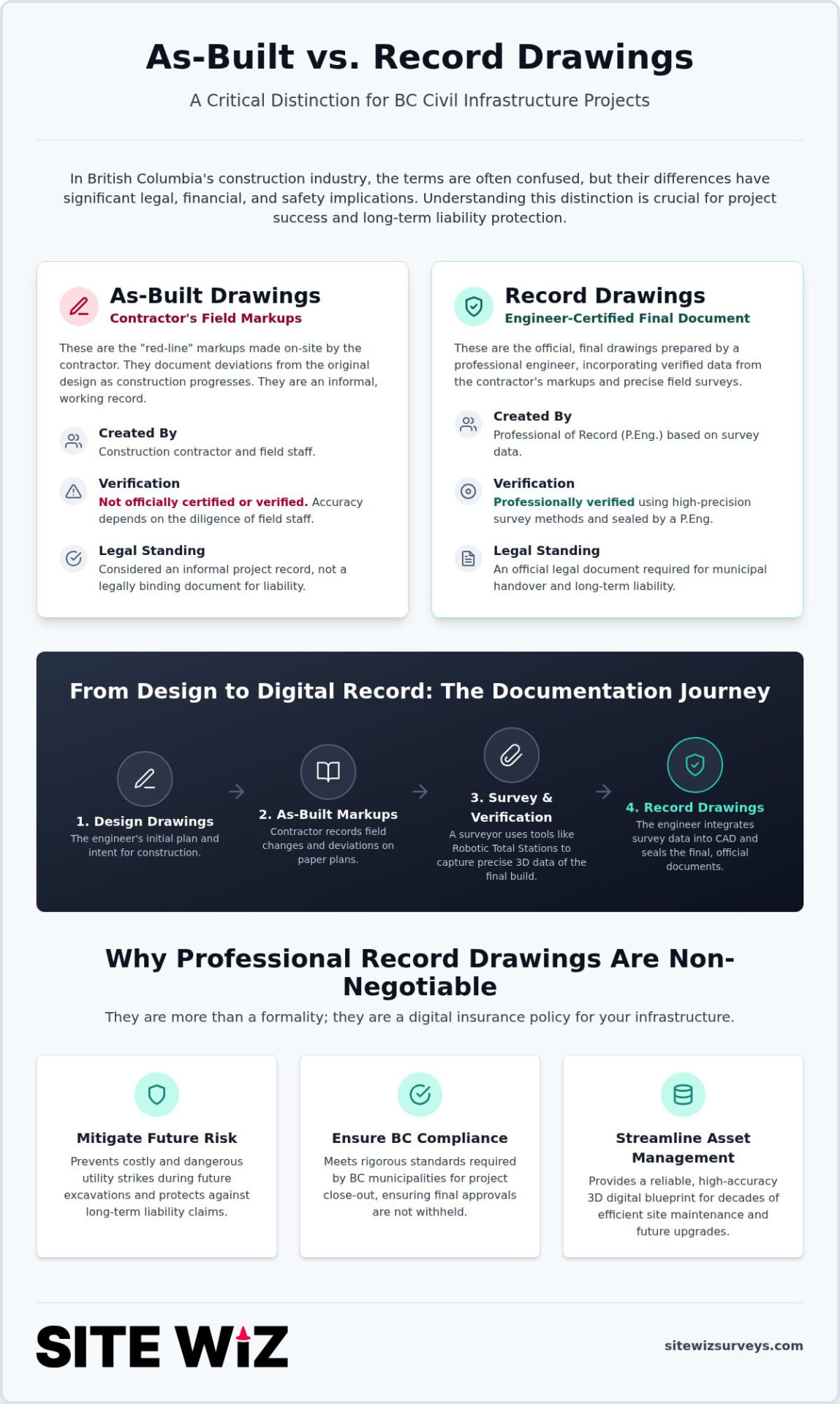

As-Built vs. Record Drawings: Understanding the Critical Difference

In the BC construction industry, the terms ‘as-built’ and ‘record drawing’ are often used as synonyms. This is a mistake that can lead to significant contractual disputes and legal ambiguity. While they both describe the final state of a project, their origins and legal weight differ substantially. Professional as-built record drawings BC standards require a clear understanding of who is responsible for the data and who is responsible for the certification.

As-built drawings are typically the contractor’s responsibility. They represent the “red-line” markups made in the field during construction. These notes capture every deviation from the original design, from a shifted utility line to a modified manhole elevation. However, these documents are not officially certified. Record drawings, conversely, are the final CAD documents prepared by the engineer. They incorporate the contractor’s field data after it has been verified through precise survey measurements. The surveyor acts as the essential bridge here, providing the raw, high-accuracy data that allows an engineer to confidently seal the final documents.

Contractual Obligations for BC Contractors

Contractors carry a heavy burden of documentation throughout the build. Standard BC contracts usually mandate that red-line markups remain current on-site at all times. If field data is disorganized, the transition to final record drawings becomes slow and expensive. To ensure a smooth handover, contractors should organize field notes by date and specific site stationing. A surveyor’s role is to verify these field changes against the original design using Robotic Total Stations, ensuring that what was noted on paper matches the physical reality in the ground. Partnering with a specialist for as-built record drawings ensures that this field data is captured with the precision required for engineering review.

The Engineer’s Role in Certification

Engineers and Geoscientists BC (EGBC) sets the standard for how these documents are finalized. According to the EGBC Practice Advisory from December 2023, the Professional of Record (POR) must review and seal the final documents to certify they accurately reflect the constructed works. This seal is a legal requirement for municipal submissions in cities like Vancouver or Victoria. Record drawings are the preferred term for official submissions because they imply a level of professional verification that “as-builts” do not. This certification process protects the owner’s long-term interests by providing a legally defensible record of the site’s infrastructure. Using the correct terminology and following EGBC standards ensures that your project remains compliant with provincial regulations while minimizing future liability.

Modern Methods for Collecting As-Built Record Data

The era of the manual tape measure and hand-drawn field sketch is rapidly closing on BC civil sites. Modern as-built record drawings BC require a level of precision that only digital data acquisition can provide. To meet the rigorous standards of municipal engineering departments, surveyors now employ a suite of advanced tools designed to capture the physical reality of a site with absolute fidelity. Robotic Total Stations are the backbone of this process, allowing for millimetre-level accuracy when positioning critical infrastructure, even in dense urban environments where satellite signals might be obstructed.

On larger developments, GNSS and GPS technology facilitate rapid earthwork and grading verification. This ensures that the final site topography aligns perfectly with the design intent. By integrating this high-fidelity field data into 3D surface modelling construction, we provide contractors with files that are immediately compatible with machine grade control systems. This synergy between field data and technology reduces the margin for error and streamlines the transition from construction to long-term operation.

3D Surveying and Digital Twin Creation

Transitioning from traditional 2D sketches to 3D survey data creates a comprehensive digital twin of the infrastructure. This approach offers more than just simple coordinates; it allows for precise volumetric calculations to verify final fill and cut quantities against the original design. Contractors benefit from receiving digital files that don’t just record the past but prepare the site for future automated grading or maintenance. This level of detail is essential for complex civil projects where every centimetre of elevation can impact drainage and structural integrity. Establishing this high-fidelity baseline is closely related to the foundational work performed during a topographic survey Victoria BC professionals rely on to generate construction-ready 3D surface models from the outset of a project.

Quality Control in Field Data Collection

Precision doesn’t happen by accident; it begins with the establishment of a robust professional control network before any as-built surveys commence. Verifying utility installation depth and horizontal positioning in real-time while trenches are still open prevents the need for costly exploratory digging later in the project lifecycle. This methodical approach ensures that every pipe and conduit is documented exactly where it lies. High-quality digital survey data follows a ‘capture once, use many’ philosophy, providing a permanent and versatile reference for the entire lifecycle of the asset.

Risk Management: Why Accurate As-Builts are Essential for BC Sites

Risk management in the civil sector is often synonymous with information management. When infrastructure is buried, its exact location becomes a matter of safety and financial stability. High-quality as-built record drawings BC ensure that future expansions or nearby excavations don’t result in catastrophic utility strikes. By adhering to BC’s ‘One Call’ and ‘Click Before You Dig’ protocols, project owners protect their assets and the public. Accurate documentation is the primary defense against the physical and legal hazards of undocumented infrastructure.

These records streamline the utility construction layout survey process for future phases. Instead of relying on approximate locations or legacy paper maps, surveyors can utilize precise digital data to establish new control points. This proactive approach reduces long-term maintenance costs by allowing technicians to locate assets for repair without extensive exploratory digging. When every centimetre counts, having a verified digital record is the only way to ensure future site works proceed without conflict.

Mitigating Rework and Design Errors

Accurate data identifies deviations from the original design before they evolve into critical failures. If a sewer line was installed at a slightly shallower grade than planned, knowing this early prevents design errors in the next phase of development. Relying on ‘guessing’ during construction is a recipe for budget overruns. The financial impact of accurate documentation is reflected in improved project ROI and potentially lower insurance premiums; it demonstrates a commitment to meticulous risk mitigation and professional oversight.

Supporting Municipal Handover and Infrastructure Acceptance

BC municipalities have strict requirements for the dedication of roads, water mains, and sewers. Handover is only possible when the infrastructure is verified against municipal standards and provincial regulations. For regional projects, following established guidelines for as-built survey drawings Vancouver Island ensures that local compliance is met without delay. Verified positioning is a cornerstone of public safety, ensuring that all public works are exactly where they are reported to be in the city’s GIS. To secure your project’s digital legacy and ensure a smooth handover, consider professional survey support for your next site close-out.

Partnering with Site Wiz Surveys for Precise As-Built Documentation

Choosing a partner for civil documentation requires more than technical proficiency; it demands a deep understanding of the regional regulatory environment. Site Wiz Surveys brings over 20 years of experience to civil infrastructure projects across BC and Alberta. We function as a strategic ally, providing the high-accuracy 3D survey data necessary to bridge the gap between field reality and engineering certification. Our team understands that as-built record drawings BC standards are rigorous, and we’re committed to delivering data that meets or exceeds these expectations every time.

Success on a modern construction site depends on seamless collaboration between surveyors, contractors, and engineers. We work directly with your project team to ensure data is captured at critical milestones, such as before the backfilling of utility trenches. This proactive approach ensures that every asset is recorded with millimetre precision. By providing customized reporting and digital data formats tailored to your specific project, we ensure your close-out process is efficient and your digital records are ready for long-term asset management.

Precision Staking to Final Record Drawings

Our end-to-end approach begins with precise construction layout and concludes with a comprehensive post-construction survey. We utilize industry-leading software to convert complex field observations into high-quality CAD files, providing the reliable backbone required for large-scale civil operations. This transition from layout to final documentation is handled with meticulous care, ensuring that the final as-built record drawings BC municipalities require are accurate, clear, and legally defensible. We take pride in being the technical foundation for infrastructure projects across Western Canada.

Get Started with Your As-Built Survey

Requesting a quote and scheduling field services is a straightforward process designed to fit your construction timeline. We recognize that professional surveying is a significant cost-saving measure for modern developers, as it prevents the expensive rework and liability issues associated with poor documentation. By investing in high-fidelity data today, you protect the future of your infrastructure and ensure a smooth handover to municipal authorities. Contact Site Wiz Surveys today to realize the full value of your project data and secure a digital legacy of precision for your site.

Secure the Digital Legacy of Your Infrastructure

Precision in post-construction data is no longer a luxury; it’s a fundamental requirement for project success and long-term liability protection. By bridging the gap between field reality and engineered record documents, you ensure that every buried utility and structural change is documented with absolute fidelity. Utilizing modern 3D survey tools not only meets municipal standards but also provides a versatile dataset for future site maintenance and expansions.

Professional as-built record drawings BC are the only way to transform temporary construction notes into a permanent, reliable asset for your project. Site Wiz Surveys provides the expertise needed for complex civil infrastructure and earthworks, backed by over 20 years of industry experience and a specialization in high-accuracy 3D data. We ensure your data is organized, verified, and ready for official certification.

Contact Site Wiz Surveys for professional as-built record drawings today to ensure your project close-out is handled with meticulous care. We look forward to being your reliable partner in documenting your next project’s success and helping you realize the full value of your site data.
