Utility Construction Layout Survey: A Guide to Precision and Conflict Avoidance

Did you know that inaccurate or incomplete subsurface information is responsible for 94% of utility damages on Canadian jobsites? For civil contractors, these errors represent more than just a momentary delay; they lead to expensive rework, safety risks, and strained relationships with stakeholders. A precise utility construction layout survey acts as your primary defence against these variables, moving beyond simple staking to provide a rigorous digital-to-physical synchronization of your project data.

You likely understand the frustration of discovering that 2D engineering plans don’t align with the actual conditions in the field. This guide will show you how professional layout surveys leverage advanced 3D surface modelling to prevent costly strikes and ensure your infrastructure integrates seamlessly with existing services. We’ll explore how high-accuracy data and meticulous as-built records streamline your progress payments and provide the reliable foundation needed for modern 3D machine control.

The Critical Role of Utility Layout in Modern Civil Projects

A utility construction layout survey is the process of precisely marking the horizontal and vertical positions of designed subsurface infrastructure on a project site. This phase is the final bridge between a theoretical engineering plan and the physical reality of the ground. In the field of Subsurface Utility Engineering (SUE), this layout ensures that every pipe, conduit, and vault is placed exactly where it can function as intended without interfering with existing assets.

For gravity-fed systems such as sanitary and storm sewers, the margin for error is virtually non-existent. A minor deviation in elevation can stall flow, leading to sediment buildup or complete system backups that are incredibly difficult to rectify once the trench is closed. Beyond the technical requirements, the financial stakes are high. With inaccurate information being the root cause of 94% of utility damages, professional layout acts as a vital insurance policy. Many Canadian insurers and project owners now require documented survey verification to mitigate the risk of utility strikes, which can cost tens of thousands of dollars in emergency repairs and liquidated damages.

Successful site positioning depends entirely on the establishment of a robust control network. This network consists of a series of highly accurate, permanent points around the site that serve as the spatial foundation for all work. Without a verified primary and secondary control network, even the most advanced equipment cannot guarantee that new utilities will align with the broader municipal infrastructure.

Why Precision Matters for Deep Services

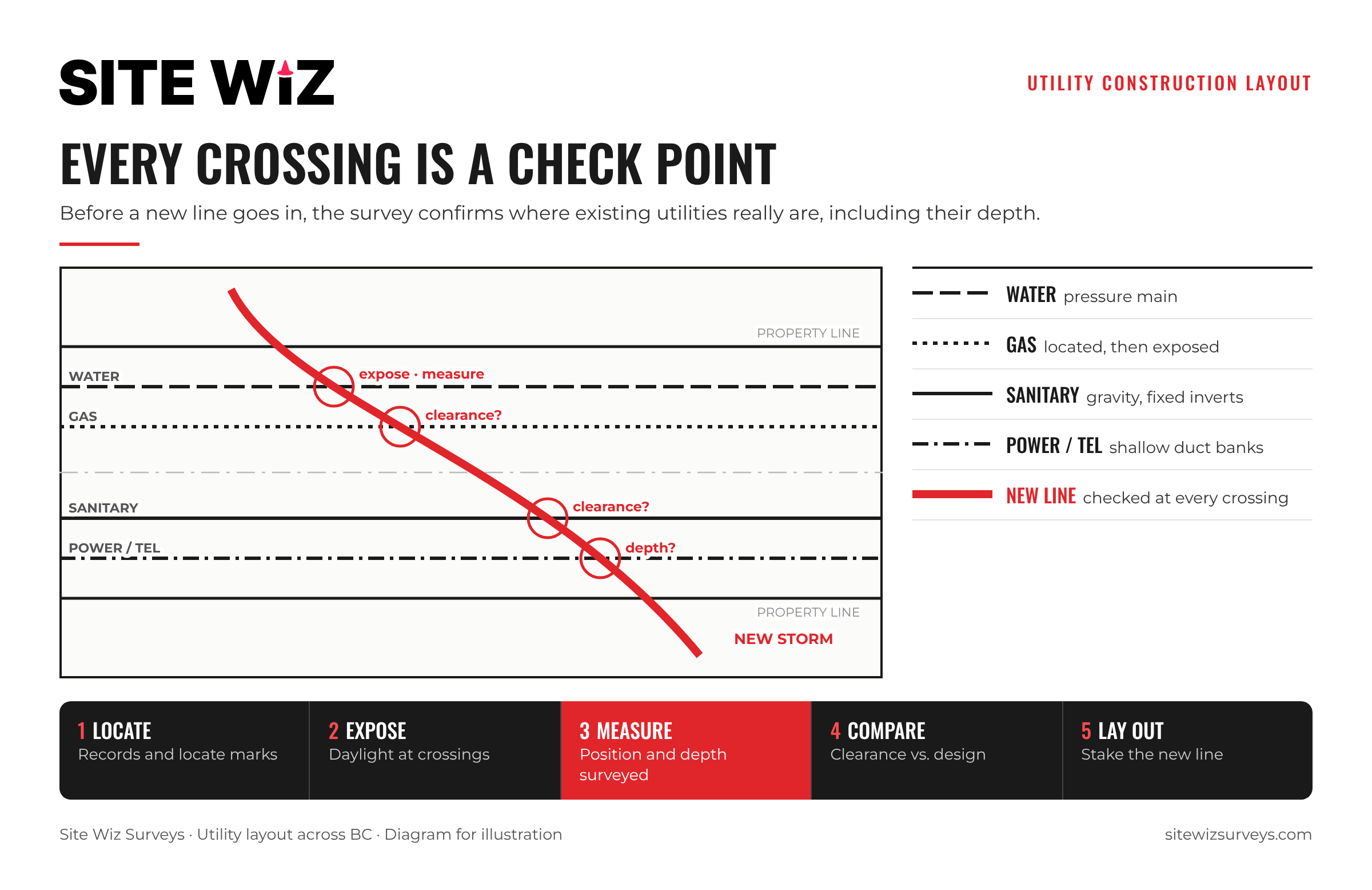

Deep services often require steep-slope tolerances where even a few centimetres of vertical error can create a “clash” with intersecting water or gas mains. Professional surveying identifies these potential conflicts before the first pipe hits the ground. By verifying the design against the physical site conditions, surveyors ensure that the vertical separation required by Canadian provincial regulations is maintained, preventing costly mid-construction redesigns.

The Consequences of Manual Grade Checking

Traditional manual methods, such as using string lines or basic lasers without secondary verification, are increasingly insufficient for modern civil projects. These methods are susceptible to human error, environmental shifts, and equipment calibration issues. In contrast, using a robotic total station allows for millimetre-level accuracy and provides a digital trail of every point staked. Relying on manual layout often results in “chasing grade,” where errors compounded over a long run require the entire line to be excavated and reset. The cost of rework in modern civil construction is the cumulative financial loss resulting from duplicated labour, wasted materials, and project schedule delays caused by avoidable installation errors.

Navigating Complex Infrastructure: A Case for 3D Modelling

The transition from traditional 2D paper plans to high-accuracy digital surface models represents a significant evolution in civil infrastructure. A modern utility construction layout survey is no longer a purely physical exercise of driving stakes into the ground; it’s a process of digital-to-physical synchronization. By creating a comprehensive 3D model of the project site, we can perform real-time conflict detection during the design-to-field phase. This allows us to identify spatial overlaps between proposed utilities and existing infrastructure that might remain hidden on flat, two-dimensional drawings.

Site Wiz Surveys specializes in preparing these sophisticated data files specifically for GPS-guided machinery. When operators have a precise digital roadmap directly in their cab, the efficiency gains are immediate. They can visualize the exact path and depth of a utility trench without waiting for manual staking. This proactive approach reduces the likelihood of on-site errors and ensures that the installation aligns perfectly with the project’s engineering intent. For contractors looking to optimize their workflow, investing in 3D surface modeling provides a reliable foundation for all subsequent excavation and installation work.

Converting 2D Engineering Plans to 3D Reality

The technical process of data preparation involves a meticulous review of engineering drawings to identify any discrepancies before they reach the field. It’s common for 2D plans to contain subtle errors in elevation or alignment that only become apparent when converted into a three-dimensional space. Digital verification saves days of field-time by catching these errors in the office. This process is anchored by geodetic control, which ensures that the 3D model is perfectly aligned with the physical site, providing a “single source of truth” for the entire project team.

Integration with GPS Machine Grade Control

Modern surveying and heavy equipment operation now function in tandem through shared 3D data environments. By integrating the utility construction layout survey data directly into the machine’s software, excavators and dozers can perform “stakeless” grading for bulk earthworks and initial utility trenching. This technology minimizes the labour required for constant manual grade checking and allows operators to maintain tight tolerances with minimal supervision. The result is a faster, safer, and more predictable construction process where the risk of over-excavation or utility strikes is significantly mitigated.

Methodology of a High-Accuracy Utility Stakeout

Executing a successful utility construction layout survey requires a disciplined, five-step workflow designed to eliminate ambiguity and prevent field errors. This methodical approach ensures that every subsurface asset is positioned with surgical precision, providing the necessary guidance for excavation crews while maintaining a digital record of the installation. By following a structured sequence, we bridge the gap between engineering theory and physical construction.

• Step 1: Establishment of a robust control network. We begin by creating a primary and secondary network of permanent markers across the site to serve as a spatial foundation.
• Step 2: Digital data preparation. As discussed in the previous section, we verify engineering plans by converting them into accurate 3D models to catch design conflicts early.
• Step 3: Field staking. Our crews place physical markers and offsets to guide the installation of pipes, conduits, and complex structures.
• Step 4: Real-time validation. We adjust for actual site conditions, such as unexpected soil variations or previously unmapped obstructions encountered during digging.
• Step 5: As-built data collection. We record the final position of the utility before the trench is backfilled to ensure 100% record accuracy for the client.

Establishing On-Site Control Networks

Professional surveyors must establish their own control networks rather than relying solely on existing municipal markers or previous site stakes. These markers can shift due to frost heave or heavy site traffic, making them unreliable for high-precision work. We utilize a combination of Global Navigation Satellite Systems (GNSS) and robotic total stations to achieve millimetre-level precision. It’s vital to protect these control points throughout the project lifecycle, which can often span several years, as they serve as the consistent spatial reference for every phase of construction, from bulk earthworks to final paving.

Field Staking and Offset Strategies

A critical component of a utility construction layout survey is the use of offsets. If a surveyor stakes the exact centreline of a proposed sewer, the marker is destroyed the moment the excavator begins work. Instead, we place “offsets”, typically at a distance of two or five metres from the centreline, allowing the ground crew to maintain their reference point throughout the dig. Clear, standardized staking shorthand is essential for effective communication. For example, marking an “invert” elevation on a hub tells the operator exactly how deep the bottom of the pipe must sit to ensure proper gravity flow.

Complex structures like manholes, catch basins, and transformers require additional care. We provide multiple reference points for these assets to ensure they are oriented correctly and set at the precise elevation required for seamless integration with the surrounding surface grades. By providing this level of detail, we help contractors avoid the costly delays associated with resetting structures that were installed incorrectly due to poor field guidance.

Mitigating Risk Through As-Built Verification

As-built record drawings represent the final legal and technical record of all installed utilities on a project. While the initial utility construction layout survey provides the roadmap for installation, the as-built phase confirms that the physical work matches the engineering design. Collecting this data before the trench is backfilled is the only way to ensure 100% accuracy. Once the soil is replaced, verifying the exact depth or orientation of a utility becomes significantly more complex and expensive. For contractors, these records are not just a formality; they are a vital component of risk management and project closure.

Accurate as-built records provide long-term value that extends far beyond the construction phase. They serve as a reliable reference for future site maintenance, emergency repairs, and potential expansions. For project owners, these documents are an essential asset that protects the integrity of their infrastructure for decades. Relying on “best-guess” records after the fact often leads to utility strikes during future work, whereas as-built survey drawings Vancouver Island civil infrastructure projects depend on provide a definitive spatial history of the site.

Verifying Installation Against Design

The “redline” process is a critical part of modern quality control. During installation, field conditions may require slight deviations from the original plan. We document these changes and correct them in the digital 3D model to create a precise representation of the “as-constructed” environment. This provides contractors with significant liability protection, as it offers a certified survey record that proves the work was completed according to approved modifications. For deep utilities, we focus on capturing specific data points such as invert elevations and pipe slopes, ensuring that the final system meets the required hydraulic flow characteristics. Understanding the full scope of what constitutes compliant documentation is essential; our guide on as-built record drawings BC civil projects require clarifies the distinction between contractor markups and verified record drawings that meet municipal standards.

Streamlining Progress Payments and Closeouts

As-built data is instrumental in accelerating the approval of progress payments from project owners. By providing precise as-built record drawings, contractors can demonstrate exactly how much work has been completed to date. We use this data to perform volumetric calculations for backfill and bedding materials, which are often a source of billing disputes. Accurate quantity take-offs derived from survey data ensure that invoices are based on field reality rather than rough estimates.

For a successful municipal handover in Canada, a professional as-built report should include:

• Verified horizontal coordinates and vertical elevations for all manholes and valves.
• Detailed pipe material, diameter, and calculated slope information.
• Precise locations of all service connections and stubs.
• Updated 3D digital files formatted for integration into municipal GIS databases.

Partnering for Precision: Professional Surveying Solutions
